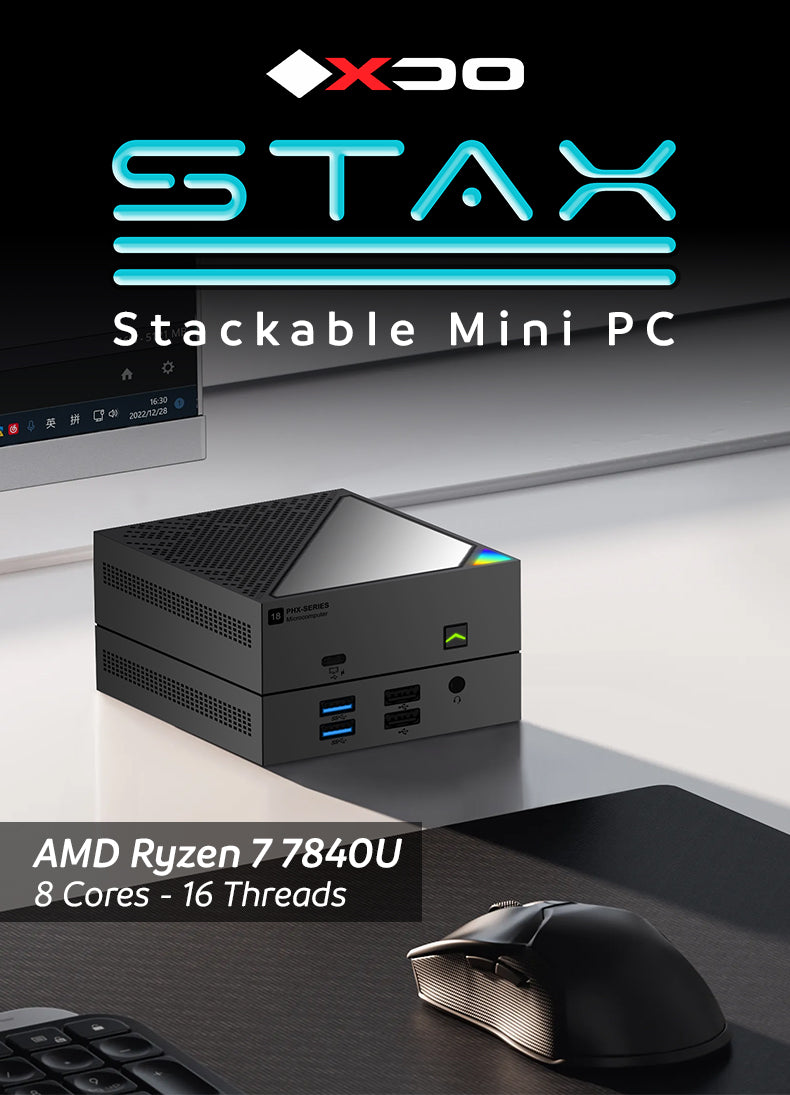

XDO presents Stax! World's first modular stackable mini PC! The bottom I/O portion is optional and the top stack can operate on it's own. This makes it ideal for applications like AV/VR or other times when you don't want to carry the whole stack.
Stax is available in two CPU variants: 6600u and 7840u. Interested in a higher CPU variant? Let us know which mobile CPU we should use in the next version!
Check out 6600u Stax HERE
| Stax Specs | |||||
| Type | Descriptions | ||||
| Product Form | Product Form | Mini PC Box | |||
| Dimensions | 100x100x67mm | ||||
| Weight | 471g | ||||
| Material | Plastic | ||||
| Surface process | Painting | ||||
| Power adapter | Standard Configuration | 100W , φ 5.5mm, 20V/5A adapter | |||
| Hardware Configuration | |||||
| Type | Descriptions | ||||
| Processor | CPU | Ryzen™ 5 6600U Ryzen™ 7 7840U |
|||
| GPU |
• AMD Radeon™ Graphics - HDR Support - Rec. 2020 (Wide Color Gamut) - Microsoft DirectX® 12 compatible - FreeSync support |
||||
| Memory | RAM | Dual channel LPDDR5 315B 16GB 6400MHz | |||
| Storage | ROM | 1x SSD M.2 2242, up to 2TB (supports PCIe 4.0 x4 )( on MB) | |||
| Sensor | G-Sensor | G-Sensor Support | |||
| motor | linear motor | linear motor Support（connector） | |||
| Front Interface Configuration | |||||
| Type | Descriptions | ||||
| Headphone jack | 1 x 3.5mm Combo Jack | ||||
| Power button | LED lits blue when power on | ||||
| Type-c |
1 x Type-C Full fuction (USB3.2 Gen2) 1 x Type-C PD charge |
||||
| WIFI | RTL8852BE WIFI6+BT5.2 | ||||
| Rear Interface Configuration | |||||
| Type | Descriptions | ||||
| DB I/O port | USB interface | 2 x USB3.2 GNE1 Type A；2 x USB2.0 | |||
| SSD M.2 | 1 x M.2 PCIe GEN3 x4 or SATA3.0 (M.2 2280), up to 2TB | ||||
| HDMI interface | 1 x HDMI 2.0 | ||||
| DP interface | 1 x DP 1.2 | ||||
| RJ45 | 2 x RJ45, 2.5G | ||||
| Type | Descriptions | ||||
| Operating System | Operating system version |
Windows 11 Pro 64-bit Windows 11 Home 64-bit |
|||
| TPM | Module | fTPM | |||
